BIB BFB Precision jig board for vise

Product Categories

Omatei Mechanical And Electrical Equipment Co., Ltd

Contact Now

Brand Name : NTH

Model Number : BIB,BFB,

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : Western Union, T/T

Supply Ability : 1000 sets/M

Delivery Time : 3 work days available

Packaging Details : Good and firm package is suitable for sea and air shipping

Price : Negotiation

Product name : Precision jig board for vise

Material : Nodular cast iron

Usage : Gripping

Feature : High precision/Stable/High quality

Size : Refer to the specification

Precision : within 0.02mm/100mm

Contact Now

Precision jig board for vise

BIB BFB Precision jig board for vise

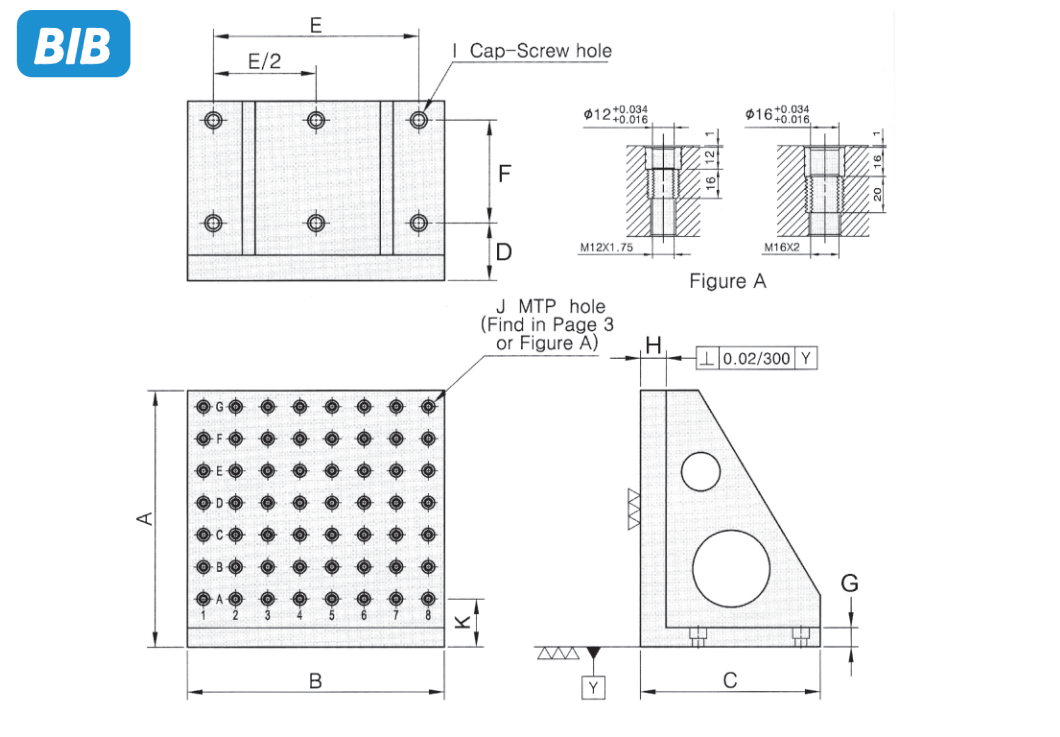

MODEL	A	B	C	D	E	F	G	H	I	J	K	L	W.G.
BIB300x300-12	300	300	220	90	250	100	30	40	⌀18	M12	75		50
BIB400x400-12	400	400	280	90	320	160	30	40	⌀18	M12	75		87
BIB500x500-12	500	500	345	90	400	200	35	50	⌀18	M12	75		176
BlB630x630-12	630	630	435	100	500	250	40	50	⌀18	M12	40		300
BlB800x800-12	800	800	525	115	640	320	45	50	⌀18	M12	75		477
BIB300x300-16	300	300	220	90	250	100	30	40	⌀18	M12	75		46
BIB400x400-16	400	400	280	90	320	160	30	40	⌀18	M16	75		85
BIB500x500-16	500	500	345	90	400	200	35	50	⌀18	M16	75		170
BIB630x630-16	630	630	435	100	500	250	40	50	⌀18	M16	40		295
BIB800x800-16	800	800	525	115	640	320	45	50	⌀18	M16	75		470

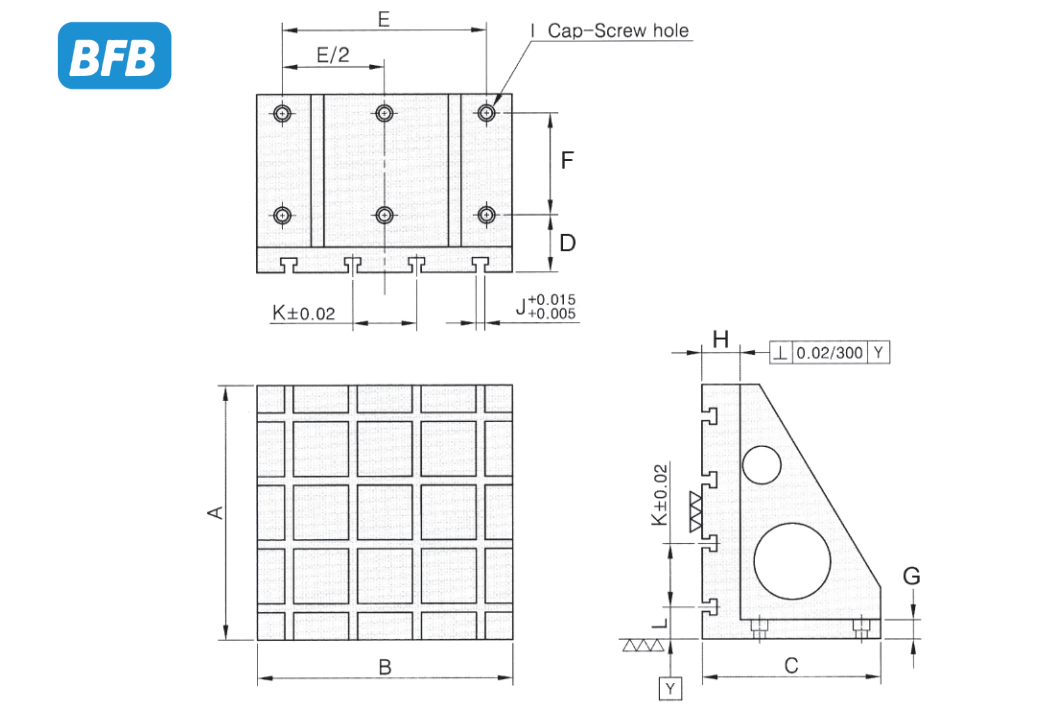

BFB300x300-14	300	300	220	90	250	100	30	60	⌀18	14	100	50	52
BFB400x400-14	400	400	300	90	320	160	30	60	⌀18	14	100	50	101
BFB500x500-14	500	500	350	90	400	200	35	60	⌀18	14	100	50	184
BFB630x630-14	630	630	450	100	500	250	40	65	⌀18	14	125	65	316
BFB800x800-14	800	800	550	115	640	320	45	75	⌀18	14	150	100	566
BFB300x300-18	300	300	220	90	250	100	30	60	⌀18	18	100	50	51
BFB400x400-18	400	400	300	90	320	160	30	60	⌀18	18	100	50	101
BFB500x500-18	500	500	350	90	400	200	35	60	⌀18	18	100	50	175
BFB630x630-18	630	630	450	100	500	250	40	65	⌀18	18	125	65	285
BFB800x800-18	800	800	550	115	640	320	45	75	⌀18	18	150	100	543
