HARD JAWS FOR SCROLL CHUCK ONE PIECE JAWS

Product Categories
Omatei Mechanical And Electrical Equipment Co., Ltd
Contact Now

HARD JAWS FOR SCROLL CHUCK ONE PIECE JAWS

Brand Name : OMATEI

Model Number : 160,200,250 etc

Place of Origin : CHINA

MOQ : 1 set

Payment Terms : T/T, Western Union

Supply Ability : 1000 sets/M

Delivery Time : 3 work days

Packaging Details : Good and firm package is suitable for sea and air shipping

Price : Negotiation

Product name : HARD JAWS FOR SCROLL CHUCK ONE PIECE JAWS

Material : 45#Steel

Funcition : Clamping

Feature : High quality /High precision

Size : Refer to the specification

Service : ODM/OEM is available

Contact Now

HARD JAWS FOR SCROLL CHUCK ONE PIECE JAWS

Brand:OMATEI

Selection Guidance
1, Chuck brand and model name
2, Workpiece size and the gripping height
Advantage
1, For standard soft jaws, the material is high quality 45# steel, stronger and hardenable.
2, Fine serration pitch can tight fit with chuck master jaws, lower abrasion.
3, Applicable onto the related chuck models of SMW/Kitagawa/Soul/Howa/Samchully/Auto-strong/Tonfou/Chandox/Autogrip/NTH and so on well-known brand.
4, Customized and non-standard jaws and be designed and OEM.

Description

Hard jaws include one-piece jaws and two-piece jaws for form A,D,C.
All kinds of hard jaws can be provided as the request of customers.

HARD JAWS FOR SCROLL CHUCK ONE PIECE JAWS

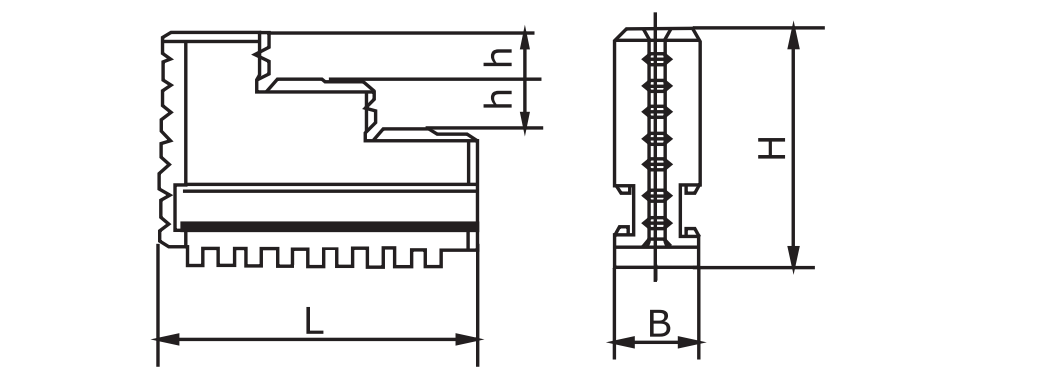

One-Piece Jaws

Size 80 100 125 130 160 165 190 200 240 250 315 320 325 380
L 32 42 56 56 70 70 72 85 105 105 130
B 12 15 16 16 18.5 18.5 22 22 27 27 36
H 33 38 45 45 54 54 57 61 69 69 91
h 6.5 7 9 9 12 12 12 12 12 12 18

The chuck with one-piece jaws is provided with each set of internal and external ones.

Subject to technical changes
